Model: CI Digital Counter Meter
function: count/ counting length/ counting batch.
High speed counting,up to 10Kcps.
One batch counting/two groups counting outputs.
Voltage input(PNP)and non-voltage input(NPN),software switch.
Adjustable pulse width of control signal.
Key Lock Function.
Optional RS485 communication function.
High anti-interference capability.
High speed counting,up to 10Kcps.
One batch counting/two groups counting outputs.
Voltage input(PNP)and non-voltage input(NPN),software switch.
Adjustable pulse width of control signal.
Key Lock Function.
Optional RS485 communication function.
High anti-interference capability.

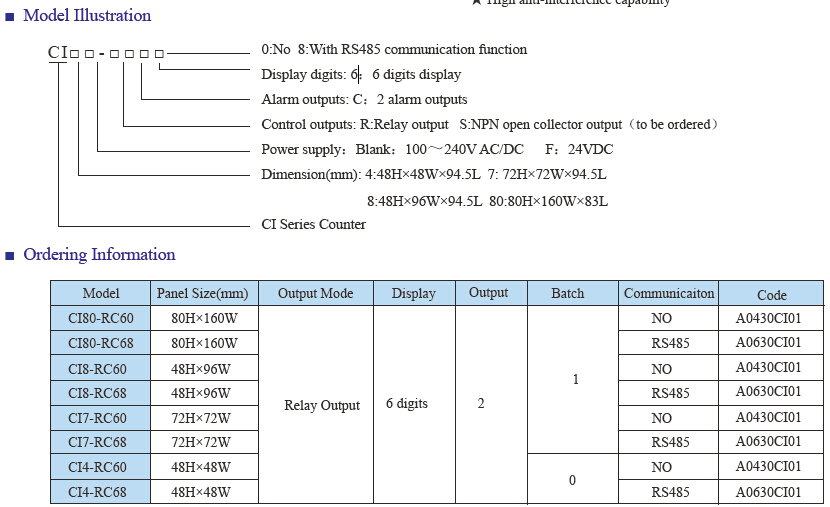

Model Specification

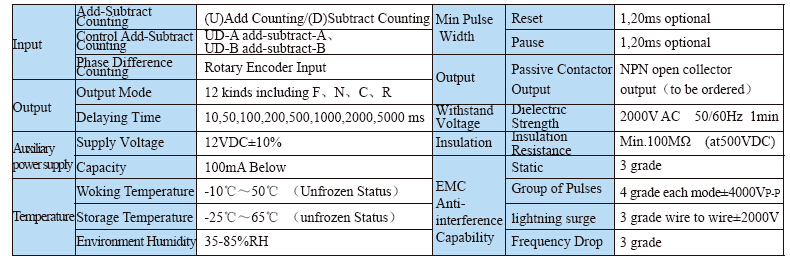

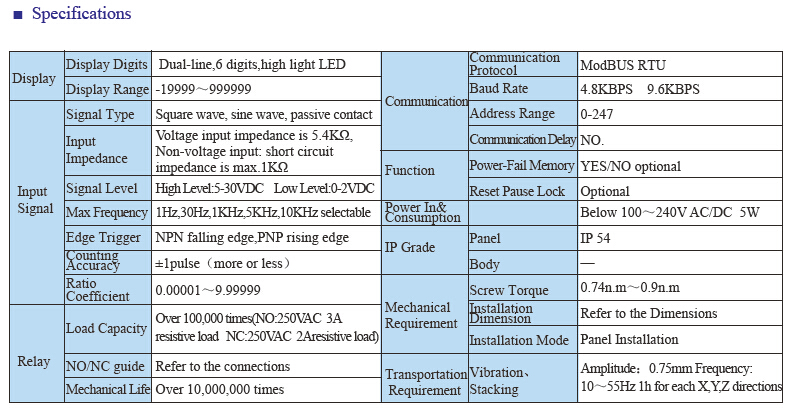

Technical Parameter
Download
Classic Cases
?
CI Series Multi-function Counter User Manual
CI Series Multi-function Counter/Timer User Manual（A Version）
CI Series Multi-function Counter User Manual（B Version）
CI General MODBUS-RTU communication protocol for counting,timing and frequencey measurement products
